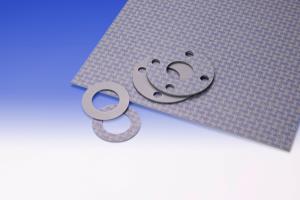

Soft Gasket/ High Performance Non-Asbestos Sheet, Gasket
|
| VALQUA No. UF300 |
| Product name: UNIVERSAL HYPER |
http://www.seal.valqua.co.jp/en/highperformance/uf300/
|
| Features1 |
| This is a high-pergormance non-asbestos sheet gasket that can be used for the widest variety of fluids, as different |
| applications are not required depending on acid or alkali fluids. |
| Features2 |
| This is a sheet gasket that enables integration of gaskets on chemical lines. Please contact us if you are using |
| multiple sheet gaskets made by other companies. |
| Features3 |
| Effective for promoting gasket integration at a plant where both alkali and acid lines exist. |
| Features4 |
| This is a product that possesses high-temperature reliability equal to that of other high-performance sheet gaskets |
| (GF300, for example), thereby possessing both chemical resistance and high-temperature reliability. |
| |
| Applicable fluid |
| Water, sea water, hot water, steam, Crude oil, alcohol, animal and vegetable oils, thermal oil, General solvents, |
| weak acid, weak alkali, Strong alkali, strong acid,Air, nitrogen, inert gas, Exhaust gas, Flammable gas, Oxygen, |
| Cryogenic fluid. |
| Inappropriate fluid |
| Polymerizable monomer, Poisonous |
| Use |
| Cover flanges, nozzles and other joints for pipe flanges, valve bonnets, towers and tanks, ovens, pressure vessels, |
| and heat exchangers in factories, electric power plants, oil refineries, steel plants, and ships. |
| Main component |
| PTFE, Silicon carbide |
| Color / print |
| Grey/Blue |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
