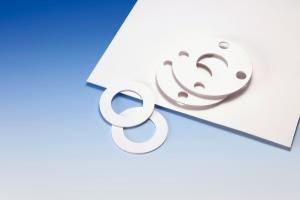

Soft Gasket/ High Performance Non-Asbestos Sheet, Gasket
|
| VALQUA No.MF300 （Food） |
| Product name: BRIGHTHYPER |
| http://www.seal.valqua.co.jp/en/highperformance/mf300/ |
Features1 |
| Gasket has more excellent chemical resistance than GF300 and SF300, and applicable for both acid |
| and alkaline applications. |
| Features2 |
| This is solid white, and thus ideal for lines incompatible with contamination. It has long-term |
| stablity under high temperature similar to other high performance sheet. |
| Features3 |
| Ideal for lines requiring white color and high chemical resistance. |
| Features4 |
| This gasket possesses the same creep relaxation property as GF300. Please contact us if you are |
| not satisfied with the reliability of other companies' white-colored products for long-term use |
| under high temperatures. |
| Features5 |
| These comply with the Food Sanitation Law. |
| Conforms to the Food Sanitation Act and standards for food and additives |
| |
| Applicable fluid |
| Water, sea water, hot water, steam,Crude oil, alcohol, animal and vegetable oils, thermal oil, |
| General solvents, weak acid, weak alkali, Strong alkali, strong acid, Air, nitrogen, inert gas, Exhaust gas, |
| Flammable gas,Oxygen,Cryogenic fluid. |
| Inappropriate fluid |
| Polymerizable monomer, Poisonous, Hydrofluoric acid |
| Use |
| Cover flanges, nozzles and other joints for pipe flanges, valve bonnets, towers and tanks, ovens, |
| pressure vessels, and heat exchangers in factories, electric power plants, oil refineries, steel plants, |
| and ships. |
| Main component |
| PTFE, Alumina |
| Color / print |
| White/Nothing |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
